My name is Manuel and I am a Data Scientist based in Berlin. I hold a Bachelor’s degree in Physics and a Master’s degree in Data Science from the University Of Valencia. I am passionate about technology and programming and I am a Free Software advocate.

Links


Publications


Knitter

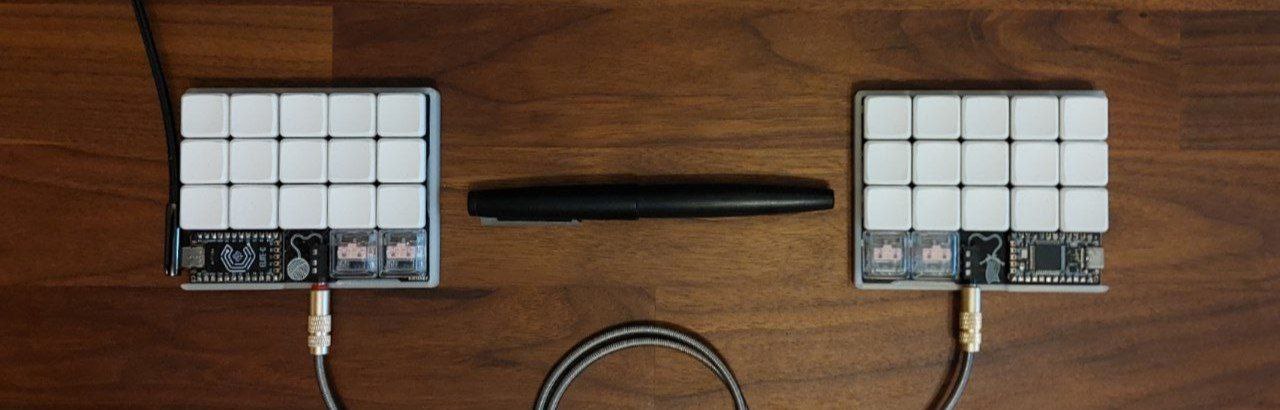

I daily drive a tiny 34-key that I designed and built from scratch. The split design allows me to type while keeping my hands separated and my elbows rested on my chair’s armrests while the low amount of keys makes your hands stay at the home row with all keys within reach. Moreover the keyboard is ultra portable. Both sides stick together with magnets on their backsides and occupy roughly the same volume as a modern smartphone, fitting confortably in any pocket.

Knitter

I’m often asked how am I able to type in such a keyboard, so here’s a quick run down. Typing on it is possible thanks to the following 2 principles:

  1. The keyboard have several layers that work in a similar fashion as a touch screen phone keyboard
  2. Some keys have a double function: when pressed they work as expected but when holded they act as a modifier key. For example the `a` key act as the shift key when holded. The home row keys contain the usual modifiers: shift, ctrl and alt. The thumb cluster is used to navigate the different layers. The images bellow show the layout of each layer.

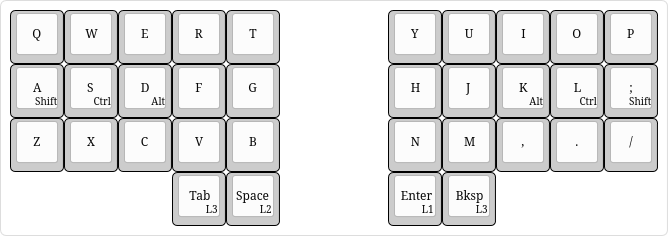

Layer 0: typewriter keys

L0

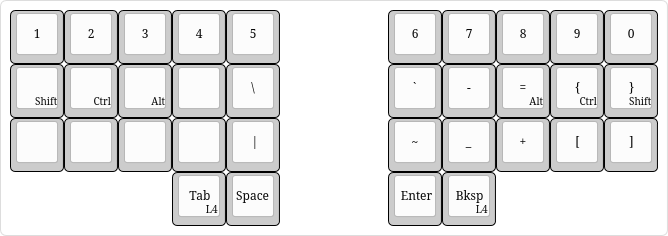

Layer 1: numbers and symbols

L1

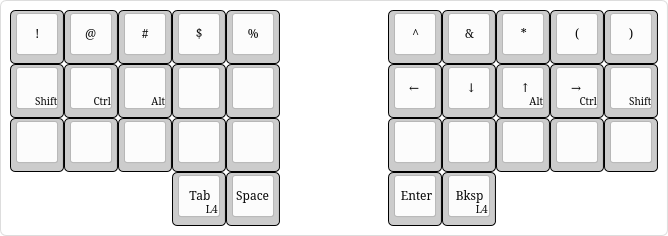

Layer 2: number row symbols and arrow keys

L2

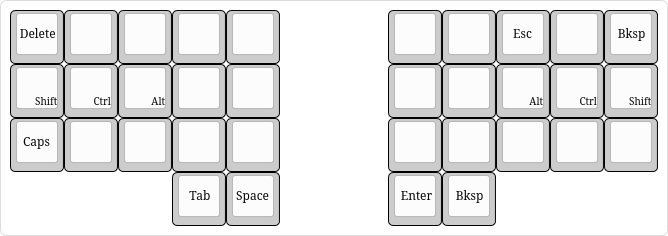

Layer 3: escape key and caps lock

L3

Layer 4: function and media keys

L4

How to build one

All the files needed to build a keyboard just like mine are available here: Knitter. I don’t offer any documentation/guide on how to do it, but if you know what you are doing, you probably can build it. If not, I can recommend another similar project with ample documentation and community support: Sweep.

Other keyboards

I have other handwired, 3D-printed keyboard designs:
